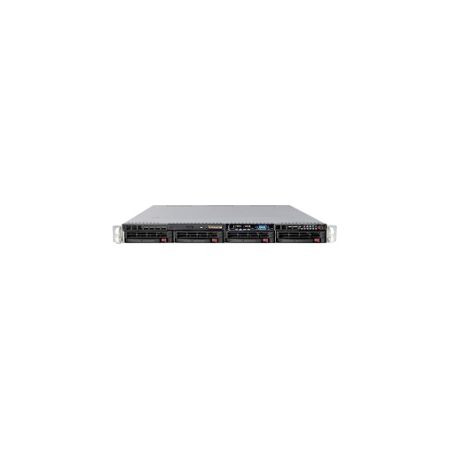

Supermicro SuperServer 5016I-MTHF Barebone System - 1U Rack-mountable - Intel 3420 Chipset - Socket H LGA-1156 - 1 x Processor Support - Black Item # 244756
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
244756
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed for applications that require the highest performance at the best price/performance/watt, these Supermicro rack servers deliver additional levels of performance, power-efficiency and reliability.
Product Details
| Item # | 244756 |
| Manufacturer # | 129159 |
| Number of SATA Interfaces | 6 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 0+1, 5 |
| Processor Supported | Xeon; Core i3; Pentium Dual-core; Celeron |
| Maximum Power Supply Wattage | 350 W |
| height | 1.7 in |
| Direct Media Interface | 5 GT/s |
| Certifications & Standards | ACPI 1.0 / 2.0 |
| Total Number of USB Ports | 8 |
| Graphics Controller Manufacturer | Matrox |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 5016I-MTHF Barebone System; 1 x Super X8SIE-F Motherboard; 1 x 1U Chassis; 1 x BPN-SAS-815TQ-O-P; 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF; 1 x SATA SET OF 4-56/45.5/35/23CM ROUND S-RA; 1 x 1CH internal 10P to 4P USB 2.0 cable for LCD,DVD, 70cm; 1 x Mini-SATA to USB adapter for slim DVD; 1 x BLACK PANASONIC SLIM DVD ROM SATA DRIVE; 1 x BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS; 1 x DRIVER CD FOR X8 UP MOTHERBOARD; 1 x RSC-RR1U-E16 with PIC-E x16 output(Riser Card) |
| Graphics Memory Capacity | 16 MB |
| depth | 19.8 in |
| Product Name | SuperServer 5016I-MTHF Barebone System |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Number of 3.5" Bays | 4 |
| VGA | Yes |
| weight | 37.92 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 1 |
| Maximum Memory | 48 GB |
| controller type | Serial ATA/300 |
| Number of Total Memory Slots | 6 |
| Processor Technology | Enhanced SpeedStep Technology; Hyper-Threading Technology; vPro Technology; Virtualization Technology; Trusted Execution Technology |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 8 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1333/PC3-10600 |
| Power Factor Correction | Yes |
| Graphics Memory Technology | DDR2 SDRAM |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 1 |
| Direct Media Interface Supported | Yes |
| Processor Socket | Socket H LGA-1156 |
| Chipset Model | 3420 |
| Number of Total Expansion Bays | 4 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | PC3-10600 - 48 GB - registered - ECC ¦ PC3-8500 - 48 GB - registered - ECC ¦ PC3-6400 - 48 GB - registered - ECC ¦ PC3-10600 - 16 GB - unbuffered - ECC ¦ PC3-8500 - 16 GB - unbuffered - ECC ¦ PC3-6400 - 16 GB - unbuffered - ECC |
| color | black |
| warranty length | 3-year limited |
| model name | 5016I-MTHF |
| Show More ▾ |
